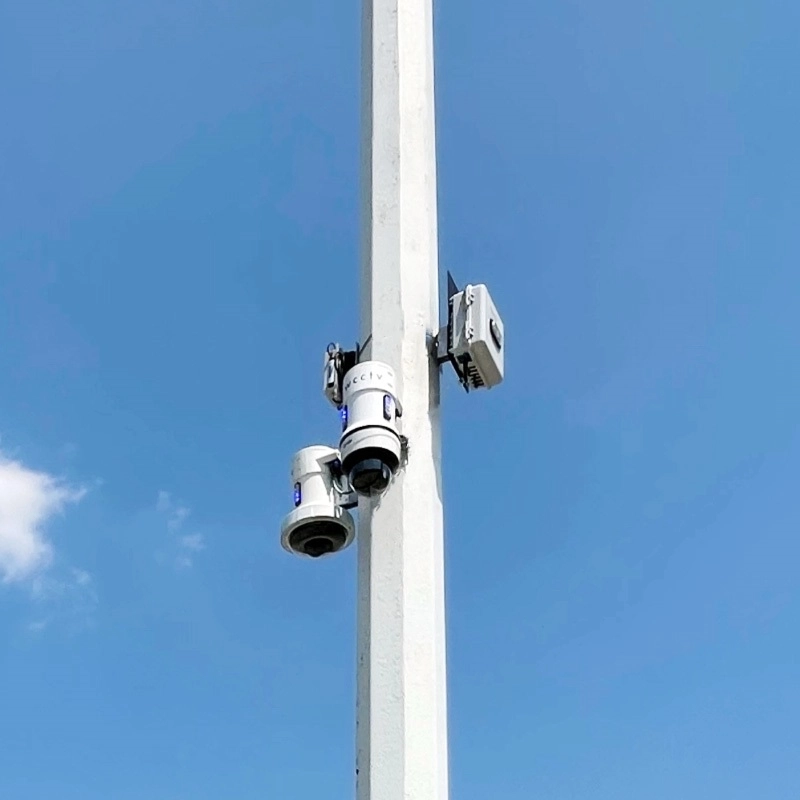

The WCCTV 4G Multi Sensor Dome is a rapid deployment pole camera that provides multidirectional video surveillance utilizing 4G LTE video transmission.

Driven by an increasing demand for remote monitoring of highway intersections and large areas such as parking lots and construction job sites, the system features an 8 MP multi-sensor camera that provides four different video streams from a single security camera.

Users get the functionality of four cameras but with just one unit to install, one cable to draw and one IP address, helping to minimize installation, maintenance and transmission costs.

All live and recorded images can be accessed remotely at any time with any device via 4G LTE, 3G or Wi-Fi.

The system's inbuilt video analytics provides visual verification and alarms for a range of intelligent surveillance applications such as traffic build up, intruder detection, loitering and more.

The additional input channel can alternatively be used to add a unique accessory such as the WCCTV First Responder which allows the broadcast of audio challenges, or the WCCTV Smart Switch which allows remote power cycling of the WCCTV 4G Intersection Dome.

Read more on the benefits of Rapid Deployment Pole Cameras

Features and Benefits

  • Multidirectional surveillance solution - 4 views from just one device

  • Flexible positioning of four varifocal camera heads

  • Integrated 4G LTE transmission

  • Rapid deployment security camera - target crime hotspots or vulnerable locations quickly

  • Portable solution, easy to move if surveillance applications change

  • 8MP multi-sensor camera

  • High definition video (up to 1080p)

  • Easy to install: Fix, Power, Walk-Away

  • Multiple powering options: mains (110-240v ac 12v ac-dc), battery pack, solar panel or solar trailer

  • Remote access to live and recorded footage any time from any device

  • Easy to install and easy to maintain: Fix-power-walk away

  • Environmentally tested and vandal resistant enclosure

  • Inbuilt video analytics for intelligent surveillance

  • 360° IR illumination and remote zoom and focus

  • Remote diagnostics

  • Integrates with most video management platforms

  • Environmentally tested (IP65 rated)

  • Integrated 4TB SSD internal storage

  • Remote power cycle option

Pole Cameras - WCCTV Intersection Dome - Multi Sensor Camera - 4-in-1 Camera - Security Camera

Transmission methods

WCCTV provides the most competitive data packages, with all products specifically designed for the secure transmission of video over cellular networks using private VPN.

  • 4G/LTE (with fall back to 3G)

  • IP/Broadband

  • LAN-only

  • Wi-Fi (Long range up to 2km, short-range 100m)

Purchase Information

For purchase information please complete a contact form.

Alternatively you can contact WCCTV on +1 877 805-9475 or sales@wcctv.com

General
Dimensions (HxWxD) 33.4" x 9.8" x 8.8"
Operating Temperature Range -22 to 122°F
Power 110-240 Volt input (mains powered) 12 Volt DC (battery powered)
Primary Power Consumption 16W - 21W
Secondary Power Consumption 7.5W - 14W
Weight 28 lbs
Software Upgrade Internet / 4G/LTE / 3G / Back to Back PC



Video
Video Inputs 2
Operation Simultaneous live, record, playback, remote access
Optical/Digital Zoom 30x\40x Optical, 12x Digital
Resolution of Camera 1080p, 720p, 720 x 576, 320 x 240
Maximum FPS 25
Recording Proprietary narrowband algorithm
MutiMode (recording algorithms)     Dynamically changes record rates and compression settings for the camera
Snapshot Video Clip Yes
Video Motion Search Yes
Archive Protection Yes - protect against overwriting
Wireless Communication Supported via suitable interface - Wi-Fi, 3G, 4G/LTE
IR Capability 820 ft (model dependant)



Storage
Maximum Internal Capacity     Up to 4TB
Hard Disk Drive Types Removable SATA hard disk drive
Export 4G/LTE / HSUPA / Network / Optional removable SATA Drive



Alarms
Alarm Function Support Alarm log, event search, pre-event recording
Alarm Reporting Yes - to a remote site via email
Display Alarm on PC Monitor Yes or network / HSUPA / 4G/LTE
Video Motion Detection Yes



Networking
Remote PTZ Control Yes
Bandwidth Management Yes
Remote Administration Yes
Remote PC Client                Client Software Free Download
Remote Web Browser Client Viewing
Password Protected Yes
Smartphone Compatible Yes
Tablet Compatible Yes
