WCCTV’s 4G IR Mini Dome is a rapid deployment pole camera specifically designed for mobile video surveillance applications such as law enforcement surveillance, parking lot security, city safety and construction site security.

As an all-in-one video surveillance solution, it combines an infrared PTZ camera, 4TB's of onboard recording capacity, and wireless transmission technology into a portable, lightweight unit.

The system is easy to install and maintain, and can easily be moved to a new location to target crime hotspots or if your surveillance requirements change.

Live and recorded footage can be accessed via 4G LTE, 3G and Wi-Fi, allowing users to remotely access the video from any device at any time.

The 4G IR Mini Dome also contains video analytics functionality for intelligent surveillance applications and automated security.

The unit features three additional input channels, allowing the addition of secondary cameras such as LPR cameras, secondary PTZ cameras or static cameras for Time Lapse Video applications. Any secondary cameras can share the recording capacity and LTE connectivity of the 4G IR Mini Dome.

The additional input channels can also be utilized for the addition of accessories such as solar powering packs and the WCCTV Audio Voice Down and Blue Light alarm system.

Read more on the benefits of Rapid Deployment Pole Cameras

Features and Benefits

  • Rapid deployment mobile surveillance system

  • Integrated 4G LTE transmission

  • Portable security camera - target crime hotspots and move when needed

  • Multiple powering options: mains (110-240v ac 12v ac-dc), battery pack, solar panel or solar trailer

  • 3 additional input channels - add LPR cameras and multiple accessories

  • Easy to install and easy to maintain: Fix-Power-Walk Away

  • Remote access to live and recorded footage any time from any device

  • Free and unlicensed viewing software

  • Remote control and configuration of PTZ functionality, presets and auto-tours

  • High definition video (up to 1080p)

  • Day/night camera

  • Up to 200ft IR illumination

  • Inbuilt video analytics for intelligent surveillance

  • Low power usage

  • Remote power cycle option

  • Lightweight unit (9 lbs)

  • Time Lapse Video ready

  • Integrates with most video management platforms

  • Environmentally tested and vandal resistant enclosure

  • Integrated 4TB SSD internal storage

  • Remote diagnostics

Applications

Pole Cameras - WCCTV 4G IR Mini Dome - Mobile Video Surveillance - Security Camera

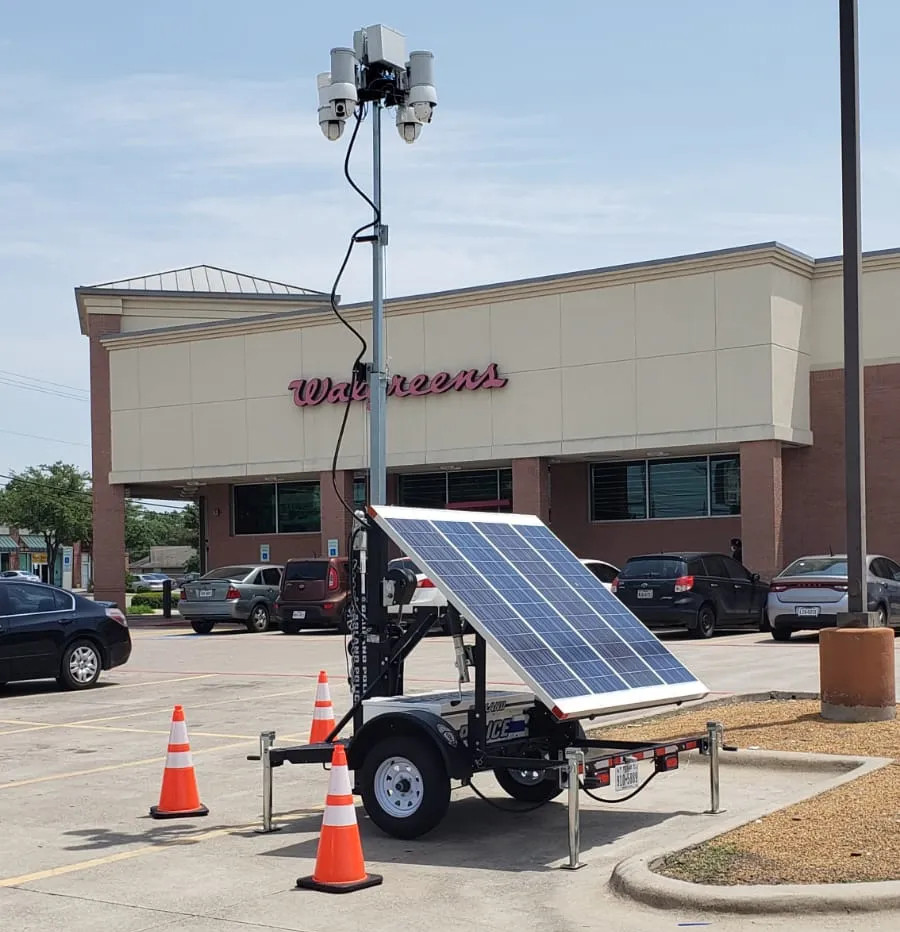

Parking Lot Security - Parking Lot Surveillance - Solar Surveillance Trailer - WCCTV LotGuard

Transmission methods

WCCTV provides the most competitive data packages, with all products specifically designed for the secure transmission of video over cellular networks using private VPN.

  • 4G LTE (with fall back to 3G)

  • IP/Broadband

  • LAN-only

  • Wi-Fi (Long range up to 2km, short-range 350 ft)

Purchase Information

For purchase information please complete a contact form.

Alternatively, you can contact WCCTV on +1 877 805-9475 or sales@wcctv.com

General
Dimensions (HxWxD) 13.7" x 7.5" x 7"
Operating Temperature Range -22 to +122°F
Power 110-240 Volt input (mains powered) 12 Volt DC (battery powered)
Power Consumption 24W
Weight 14 lbs
Software Upgrade Internet / 4G / 3G / Back to Back PC



Video
Video Inputs 4
Operation Simultaneous live, record, playback, remote access
Optical/Digital Zoom 23x Optical, 24x Digital
Resolution of Camera 1080p, 720p, 420p
Maximum FPS 25
Recording Proprietary narrowband algorithm
MultiMode (recording algorithms)     Dynamically changes record rates and compression settings for the camera
Snapshot Video Clip Yes
Video Motion Search Yes
Archive Protection Yes - protect against overwriting
Wireless Communication Supported via suitable interface - GSM, GPRS, UMTS, HSDPA, HSCSD, 3G, 4G



Storage
Maximum Internal Capacity     Up to 4TB
Hard Disk Drive Types Removable SATA hard disk drive
Export 4G / HSUPA / Network / Optional removable SATA Drive



Alarms
Alarms 2 camera control, 1 alarm, 1 arming / disarming and 1 auxiliary input
Alarm Function Support Alarm log, event search, pre-event recording
Alarm Reporting Yes - to a remote site via email
Display Alarm on PC Monitor       Yes or network / HSUPA / 4G
Relays 2 relays - system error and/or remote control purposes
Video Motion Detection Yes - onboard analytics



Networking
Remote PC Client                Client Software Free Download
Remote Web Browser Client Viewing
Password Protected Yes
Smartphone Compatible Yes
Tablet Compatible Yes
