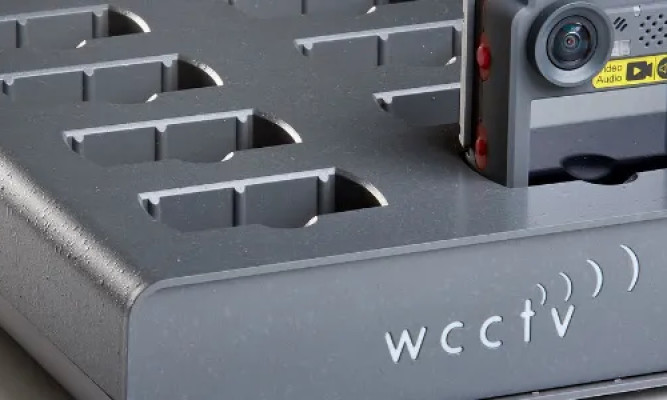

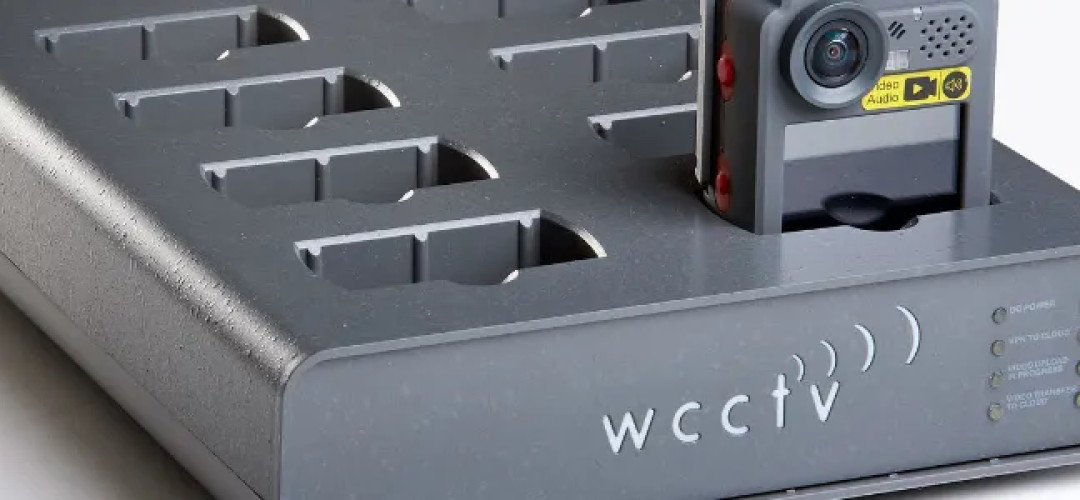

WCCTV Docking Station - close up

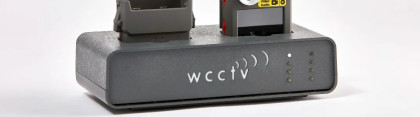

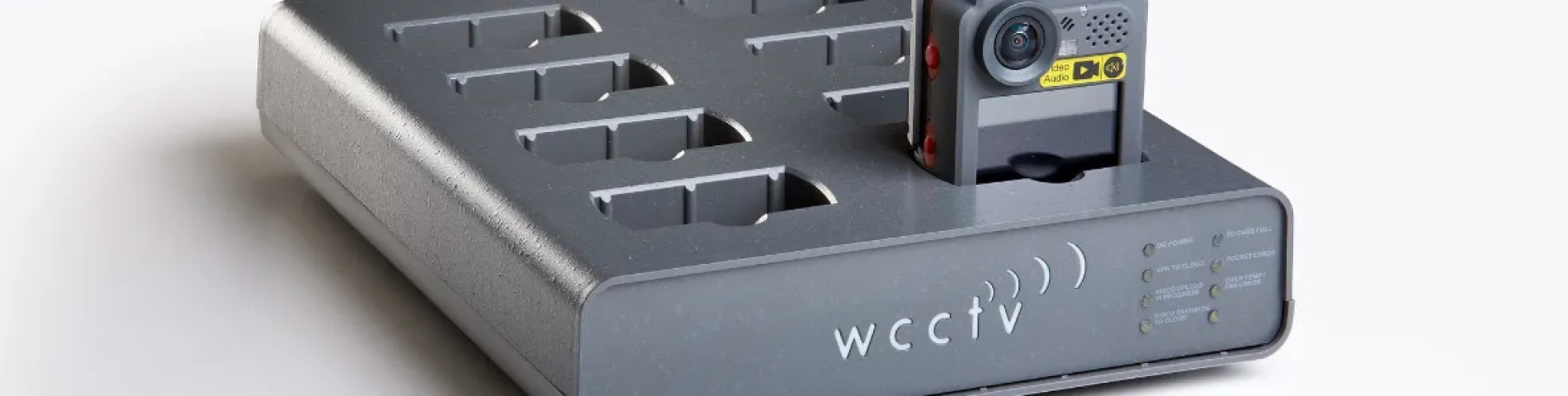

WCCTV Smart Hub - Front with Camera
WCCTV Smart Hub - Top view
WCCTV Smart Hub - Back
Product Information Product Specification

WCCTV’s Smart Hubs are docking stations designed to be used with WCCTV’s Body Cameras.

They provide simultaneous charging and wireless video uploading from WCCTV’s Body Worn Cameras into WCCTV’s Evidence Management Software (EMS).

Depending on your requirement, the WCCTV Smart Hubs are available with either 2 or 8-way docks.

Utilising a Smart Hub removes the need for multiple adaptors and provides users with a convenient method of uploading footage from their body cameras.

They are capable of charging a WCCTV body camera within three hours (from 0% to 100%), allowing an operator to quickly get the units deployed back into the field.

Their unique 'store and forward' technology allows immediate footage transfer from camera to dock, meaning cameras can go straight back into the field once fully charged. The footage is then uploaded from the dock to the EMS cloud software.

WCCTV Smart Hubs also automatically allow users to receive the latest firmware upgrades for WCCTV Body Worn Cameras.

Request a trial of WCCTV Body Cameras

1 Fast charging of up to 8 units

2 Secure docking system

3 Secure VPN tunnel into WCCTV EMS

4 Store and forward capability

5 Automatic download of firmware updates


Download Data Sheet

Features and Benefits

  • 2 or 8 way Smart Hubs
  • Automatic wireless uploading of digital files into WCCTV EMS software
  • Fast charge of body worn camera units
  • Optional built-in 4G connectivity
  • WPA2 PSK Security
  • Time-saving, convenient and hassle-free
  • Automatic download of firmware upgrades for WCCTV Body Worn Cameras
  • Store and Forward capability

Power Supply

2 Way Hub - Input: 240v Output: 12v - 3.0 A
8 Way Hub - Input: 240v Output: 24v - 5.0 A

Dimensions

2 Way Hub - 83 mm (L) x 47 mm (H) x 200 mm (W)
8 Way Hub - 278 mm (L) x 47 mm (H) x 200 mm (W)

Purchase Information

For purchase information please complete a contact form.

Alternatively you can contact WCCTV on +44 (0) 800 470 4630 or sales@wcctv.com

Made-in-Britain-logo-300

Power Supply

8 Way Hub - Input: 240v Output: 24v - 5.0 A
6 Way Hub - Input: 240v Output: 24v - 5.0 A
3 Way Hub - Input: 240v Output: 12v - 3.0 A
2 Way Hub - Input: 240v Output: 12v - 3.0 A
1 Way Hub - Input: 240v Output: 12v - 3.0 A

Dimensions

8 Way Hub - 278 mm (L) x 47 mm (H) x 200 mm (W)
6 Way Hub - 653 mm (L) x 57 mm (H) x 87 mm (W)
3 Way Hub - 352 mm (L) x 57 mm (H) x 87 mm (W)
2 Way Hub - 83 mm (L) x 47 mm (H) x 200 mm (W)
1 Way Hub - 152 mm (L) x 57 mm (H) x 87 mm (W)
